Hexbeam Part7 (2025/03/21)
 Until now.Hexbeammouth turned down at the cornerslink
   24/10/14 Hexbeam Purchase Plan
   25/02/21 Hexbeam Part2
   25/02/22 Hexbeam Part3
   25/03/07 Hexbeam Part4
   25/03/09 Hexbeam Part5
   25/06/16 Hexbeam Part6
   25/03/21 Hexbeam Part7
   25/04/12 Hexbeam Part8
The center post (power feeder) of the HEXbeam has received the chrysanthemum washers and is finally complete.
If you buy it from NA4RR Hexbeam Sales, it costs $234 (about $34,720 yen) including shipping, though,
The cost of the parts for the homebrew was 1,402 pesos (about 3,715 yen), which is about 1/10 of the price.
RG8X was recommended for the coaxial cable, but it was not available, so RG8 was used.
As a result, it can be operated at higher power.

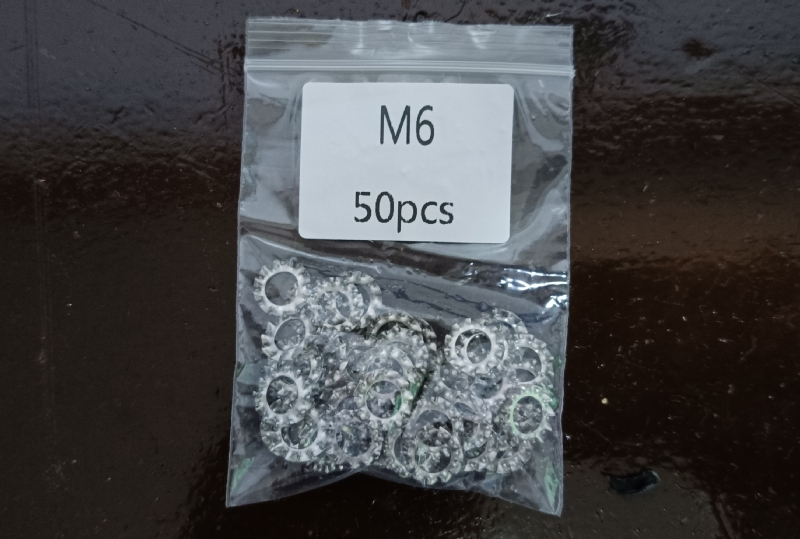

Chrysanthemum washer M6 141 pesos for 50 pieces (about 374 yen)

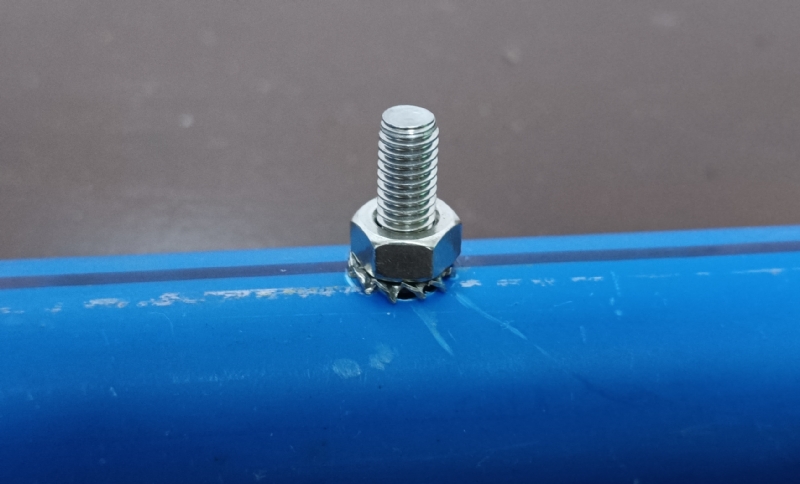

Loosening stop for PVC pipe with M6 bolt.

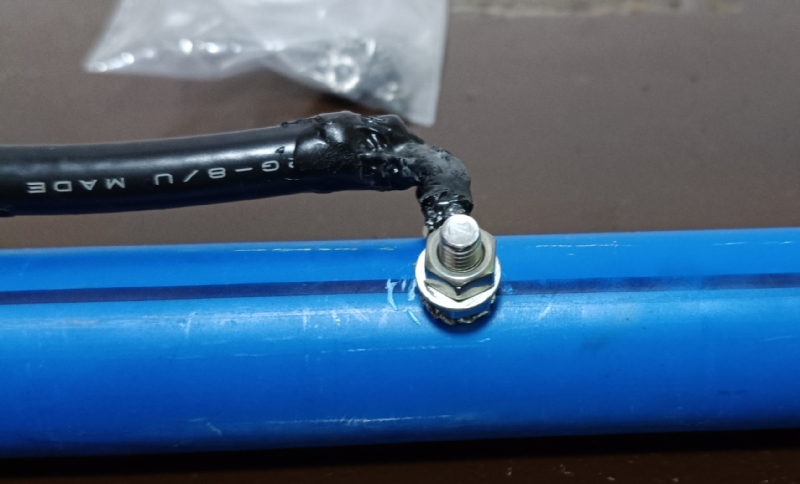

Coaxial cable in place

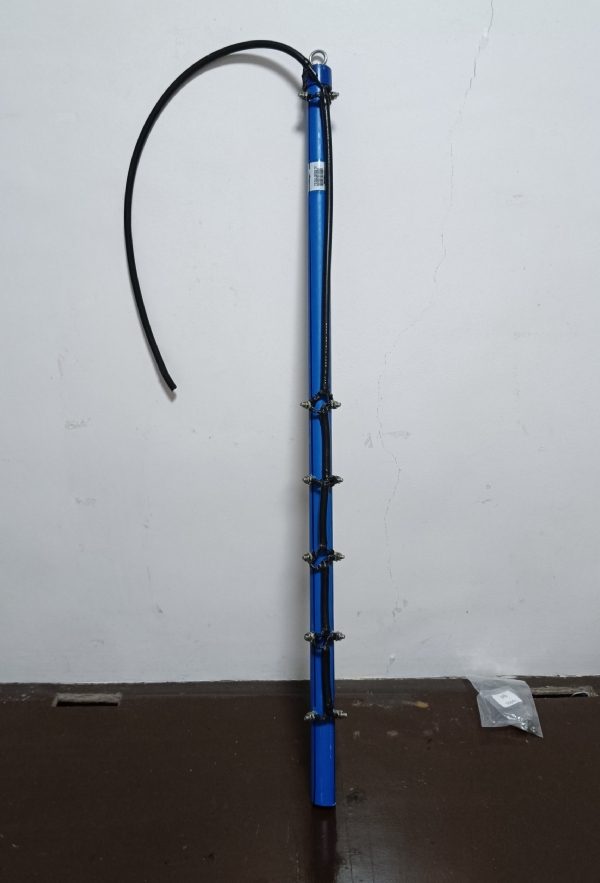

Completed HexBeam center post (power feed)


1-inch PVC pipe 6m 187 pesos 496 yen
End cap for 1-inch PVC pipe one (object) 15 pesos 40 yen
6mm x 20mm stellens bolt 12 pieces 100 pesos 265 yen
6mm nut 25 pieces 112 pesos 298 yen
Eye Nut two (objects) 182 pesos 482 yen
chrysanthemum-shaped metal washer 50 pieces 141 pesos 374 yen
liquid tape 125ml 168 pesos 445 yen
Crimp terminal R3.5-6L Nichif (from Japan)
Previously purchased, price unknown.		 12 pieces
RG8U coaxial cable 2m 298 pesos 790 yen
Coaxial connector for RG8 one (object) 199 pesos 527 yen
total amount 1,402 pesos 3,715 yen
March 20, 2024   Mar. 30, 2025
